Runva 11XP Dyneema Premium Edition

  • 11xp Premium edition
  • 11xp Premium edition

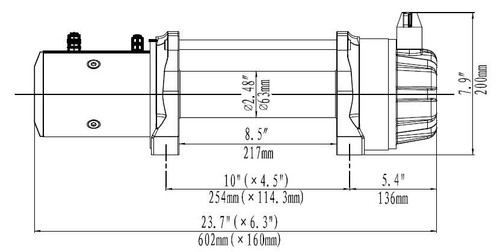

  • 11xp dimensions
Price:
$975.00
SKU:
Runva 11XP 12V Dyneema BLACK Premium Edition
Brand:
Weight:
38.00 KGS
Shipping:
$35.00 (Fixed shipping cost)
Quantity:


Product Description





This is the newly designed 11XP called the Premium Edition.

-IP67 Motor

-Brake in gearbox

-Easy engage clutch lever

-Shackle Thimble

-Bonus Shackle, Snatch Block, Winch Cover, Battery isolator



Package includes:

  • Winch with Dyneema Winch Rope
  • 600A Solenoid Pack with 32mm2 cables
  • 3.6m Handheld Remote
  • Wireless Remote
  • Black Aluminium Hawse Fairlead
  • Shakle thimble
  • Mounting Bolts
  • Snatch Block
  • Winch Cover





Features:

  • Free spooling clutch
  • Winch power in and out via remote
  • Automatic braking action. (Screw Cone)
  • 100% Waterproof competition grade Solenoids
  • High output series wound motor
  • Heavy duty robust construction
  • Full Steel 3 stage Runva patented planetary gearing
  • Quality black finish
  • Solenoid Pack mounted inside attractive Runva steel housing
  • Limited lifetime warranty*

Specifications:

Rated Line Pull 11,000lb (4990kg)

Motor – Series Wound (12V) 4.9kW/6.5hp

Gear Reduction Ratio (12V) 230:1

Dyneema Winch Rope 11mm x 25M

Overall Dimensions 574mm x 160mm x 200mm

Mounting Bolt Pattern 254mm x 114.3mm

The perfect all-round winch. Attractive finish that would complement any vehicle no matter how tough or shiny.


Line pullLine speed ft/min (m/min)Current draw Amps (max)   Layer of CableRated line pull Per layer lb’s (kg)Cable capacity Per layer ft (m)
lb DC 12V DC 12V
0 22.3 (6.8) 100   1 11000 (4990) 16.1 (4.9)
4000 13.1 (4.0) 220   2 8766 (3976) 36.4 (11.1)
8000 9.8 (3.0) 330   3 7286 (3305) 60.0 (18.3)
11000 5.8 (1.8) 540   4 6233 (2827) 83.7 (25.5)

Warranty Information

Since all Runva Performance Winches are produced at the highest standard, we proudly offer a Limited Lifetime Warranty on all products.

Lifetime Mechanical Warranty - This covers all Mechanical Components on the winch. (Except Steel Cable and Dyneema Winch Rope)

5 Year Electrical Warranty – this covers all Electrical Components on the winch.

No Yearly Servicing Required
No Hidden Fine print
Extremely low failure rate.
In the unlikely event of a claim, they are acknowledged and handled very quickly

http://www.runvawinch.com.au/wp-content/uploads/2012/03/Runva_Warranty_Policy.pdf
